HR 8518

type ST · family 1SS1 · 29.4 kV maximum anode voltage · 110° deflection · 4 windings · 341 g

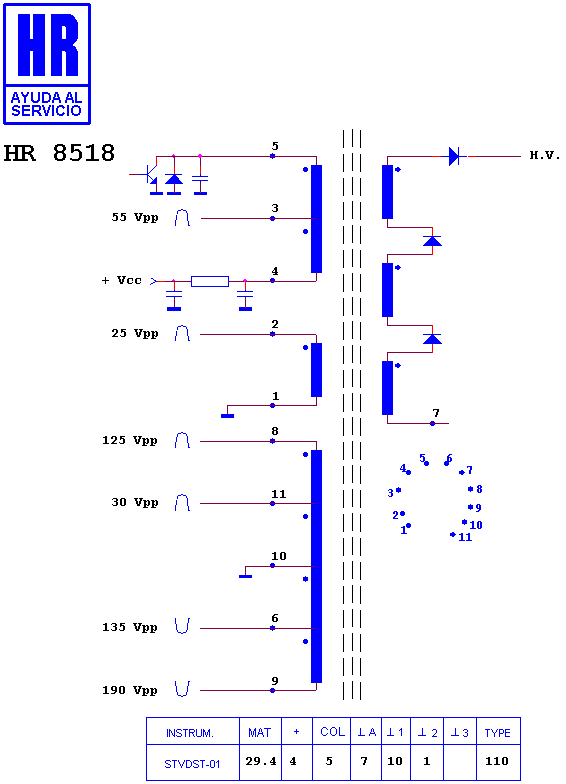

Schematic diagram for HR 8518
schematic

Manufacturer equivalents (6)

1-439-482-00 · 1-439-482-11 · 1-439-482-12 · 1-439-483-00 · 1-439-483-11 · NX 1710

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80044 · HR 8382 · HR 8852 · HR 8121 · HR 6451 · HR 7706 · HR 8810 · HR 7374 · HR 8886 · HR 6728 · HR 6585 · HR 46276

Fitted to (12)

SONY KV 13 EXR 91 · SONY KV 13 TR 14 · SONY KV 13 TR 24 · SONY KV 13 TR 27 · SONY KV 1427 R · SONY KV 1427 TR · SONY KV 19 TR 10 · SONY KV 19 TR 20 · SONY KV 19 TS 10 · SONY KV 19 TS 20 · SONY KV 2027 R · SONY KV 2037 RS
