HR 6382

type ST · family 1BP1 · 32.1 kV maximum anode voltage · 110° deflection · 3 windings · 425 g

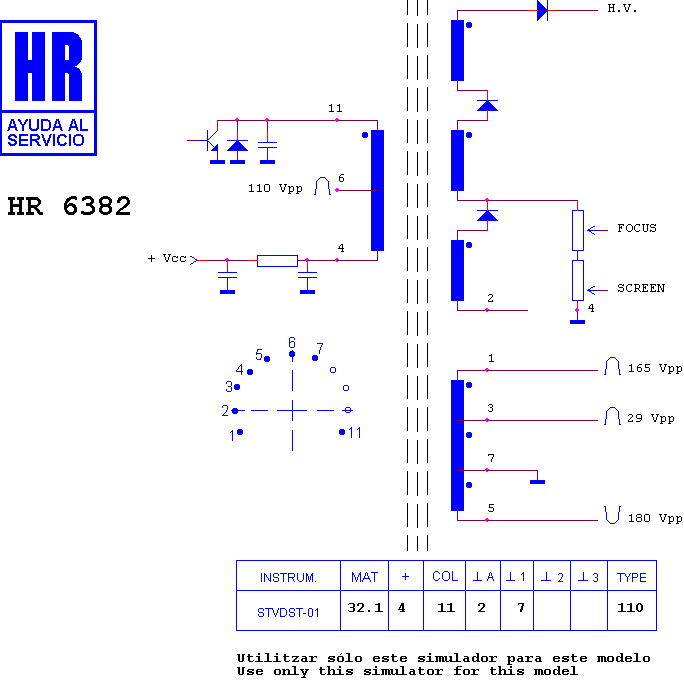

Schematic diagram for HR 6382
schematic

Manufacturer equivalents (3)

56 TRNS FB 3005 · FB 3005 · TRNS FB 3005

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46276 · HR 7870 · HR 7050 · HR 7360 · HR 80030 · HR 7706 · HR 8382 · HR 8968 · HR 8875 · HR 8524 · HR 8810 · HR 7831

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

AMD 722 S · AMD MONITOR
