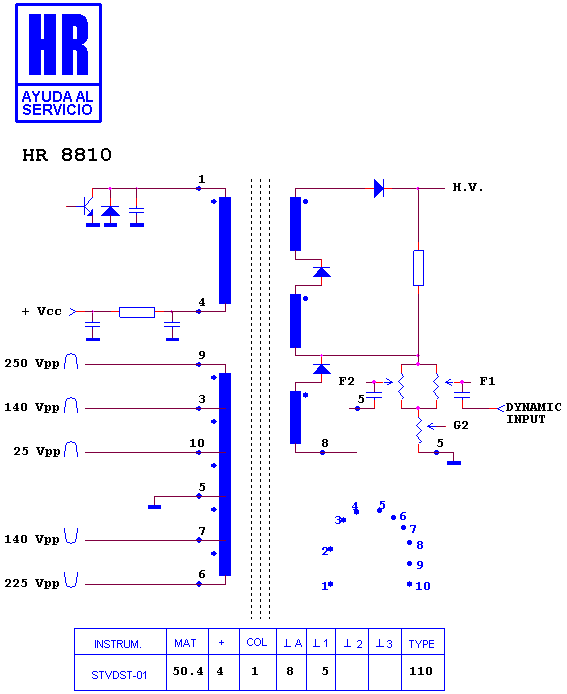

HR 8810

type ST · family 1YD · 50.4 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

Manufacturer equivalents (7)

1302.7009 · BW 02871 · F 015 WJ-H · FA 015 WJ · FA 015 WJ-H · RTRNF015WJHZZ · RTRNFA015WJZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8406 · HR 8170 · HR 6142 · HR 80040 · HR 8973 · HR 8121 · HR 8518 · HR 7802 · HR 8679 · HR 6382 · HR 8699 · HR 80044

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SHARP 28 JF 74 H · SHARP CHASIS GA 20
