HR 8382

36 kV maximum anode voltage · 110° deflection · 3 windings · 290 g

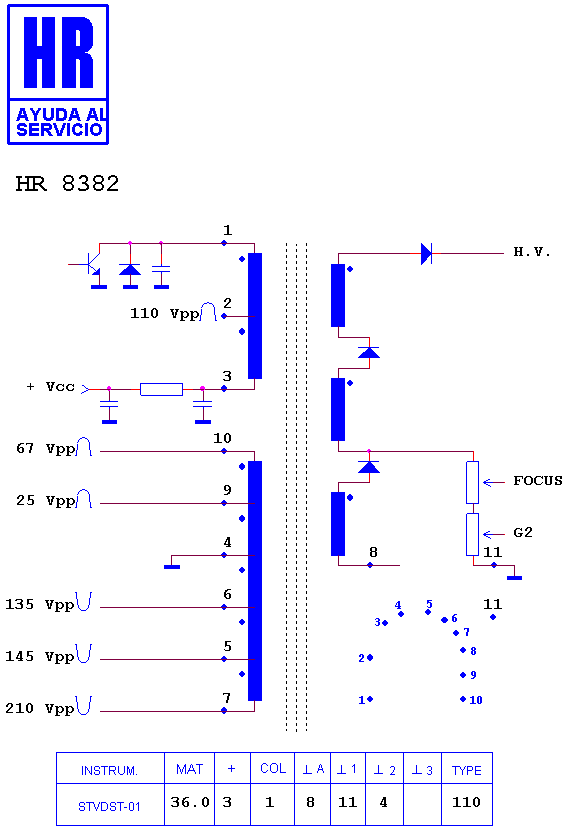

Schematic diagram for HR 8382
schematic
Schematic diagram for HR 8382
schematic (archived)

Manufacturer equivalents (1)

HR8382

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8852 · HR 46276 · HR 80036 · HR 8699 · HR 8779 · HR 80092 · HR 7107 · HR 7706 · HR 8810 · HR 7374 · HR 8215 · HR 5646
