HR 80096

34.5 kV maximum anode voltage · 110° deflection · 3 windings · 278 g

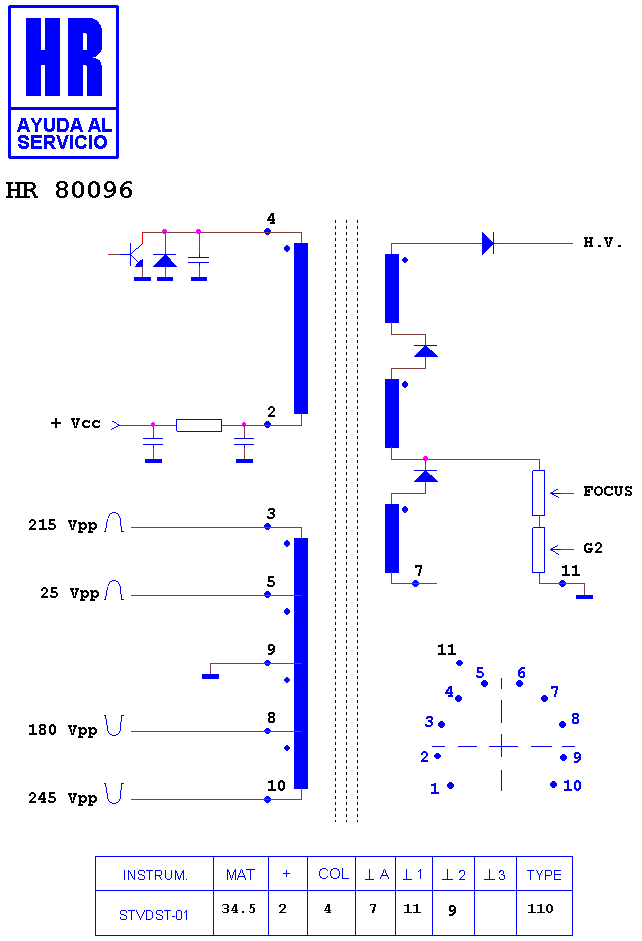

Schematic diagram for HR 80096
schematic (archived)

Manufacturer equivalents (5)

1142.0955 · 1142.0955B · 276-23386 · 276-23386.050 · HR 80096

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7114 · HR 5716 · HR 5717 · HR 7374 · HR 5714 · HR 7107 · HR 8933 · HR 5646 · HR 8382 · HR 80030 · HR 80130 · HR 5809

Fitted to (2)

LOEWE / LOEWE-OPTA 884-82280 · LOEWE / LOEWE-OPTA CHASIS C 8500
