HR 80092

33.6 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

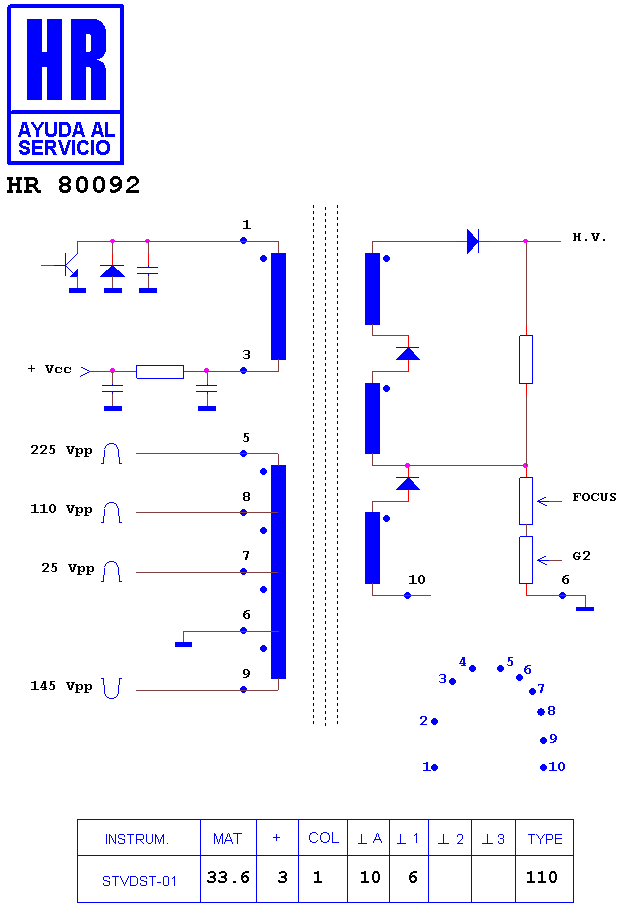

Schematic diagram for HR 80092
schematic (archived)

Manufacturer equivalents (4)

1372.0116 · 1372.0116A · AA26-00236A · HR 80092

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80036 · HR 8852 · HR 8382 · HR 8406 · HR 8109 · HR 8215 · HR 8853 · HR 8436 · HR 8403 · HR 80014 · HR 7368 · HR 8810

Fitted to (3)

SAMSUNG WS 28 N 064 N · SAMSUNG WS 28 W 064 N · SAMSUNG WS 28/ A 114 N
