HR 8375

type SM · family 1RP · 26.6 kV maximum anode voltage · H° deflection · 3 windings · 388 g

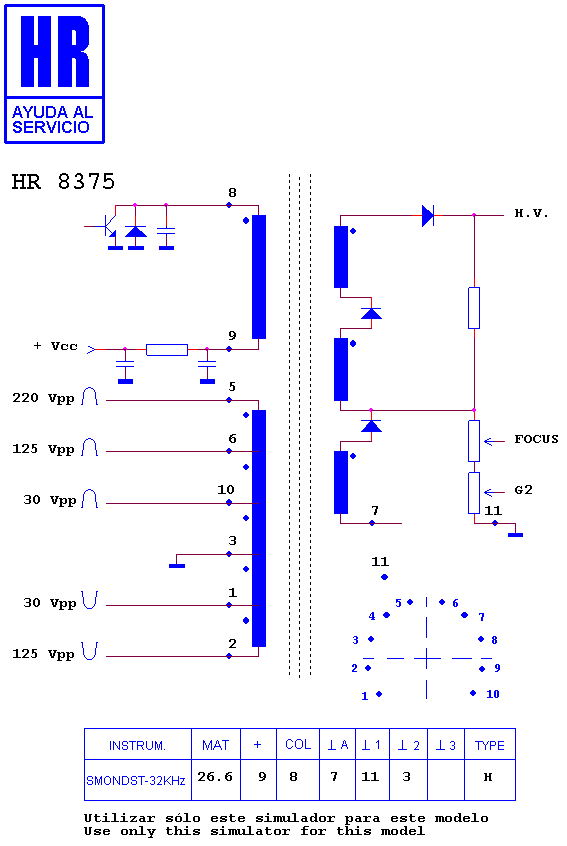

Schematic diagram for HR 8375
schematic

Manufacturer equivalents (6)

003311171 · F 2089 BM · PET32-C9 · RO885 · RTRNF2089BMZZ · TR885

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8384 · HR 46273 · HR 46223

Fitted to (6)

SHARP 28 JF 76 E · SHARP 28 JW 76 E · SHARP 29 JF 76 E · SHARP 32 JF 76 E · SHARP 32 JW 76 E · SHARP CHASIS GA 200
