HR 46273

51.1 kV maximum anode voltage · H° deflection · 4 windings · 474 g

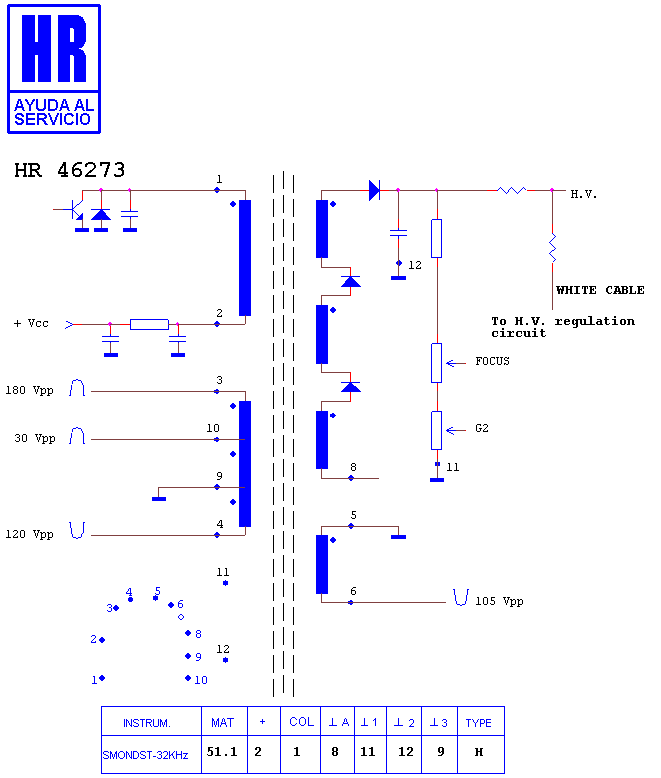

Schematic diagram for HR 46273
schematic (archived)

Manufacturer equivalents (3)

13837962EB · 312213837962EB · AT2090/01EB

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46223 · HR 7706 · HR 8375
