HR 8384

type SM · family 1RP · 23.7 kV maximum anode voltage · H° deflection · 3 windings · 388 g

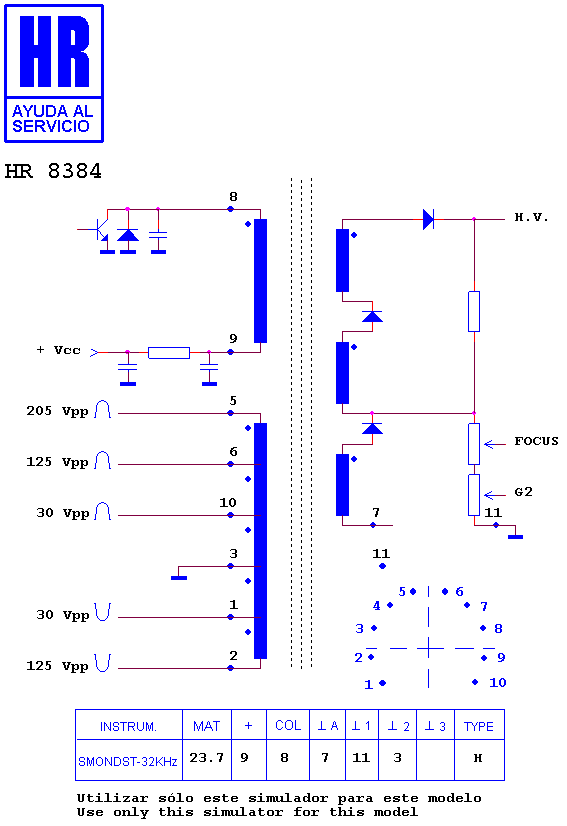

Schematic diagram for HR 8384
schematic

Manufacturer equivalents (2)

F 2087 BM · RTRNF2087BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8375 · HR 46223

Fitted to (4)

SHARP 28 JS 74 S · SHARP 28 JS 75 E · SHARP CHASIS GA 200 · SHARP CHASIS GA 200 (4:3)
