HR 8257

type SM · family 1XP1 · 27.2 kV maximum anode voltage · L° deflection · 4 windings · 290 g

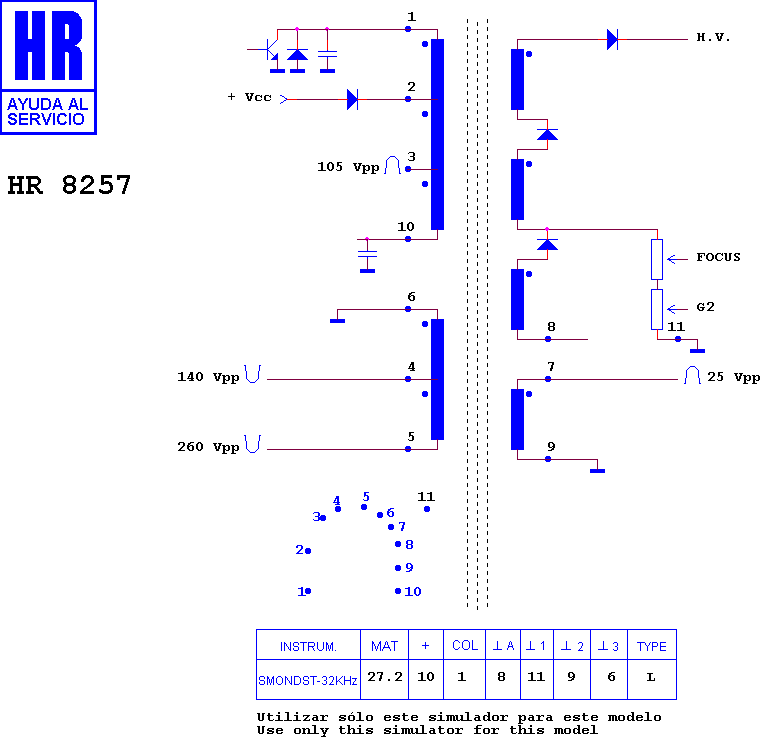

Schematic diagram for HR 8257
schematic

Manufacturer equivalents (12)

08170 · 08171 · 08172 · 08173 · 08174 · 3306 130 08171 · 480614017058 · 482214017058 · AT 2079/B12 · FAT30670 · KT 2004 · TVC/142

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7089

Fitted to (5)

PHILIPS 14 GL 1018 · PHILIPS 14 GL 1019 · PHILIPS 14 GL 1049 · PHILIPS 14 GL 1319 · PHILIPS CHASIS GR 3
