HR 8525

type SM · family 1ACP · 23.2 kV maximum anode voltage · L° deflection · 4 windings · 434 g

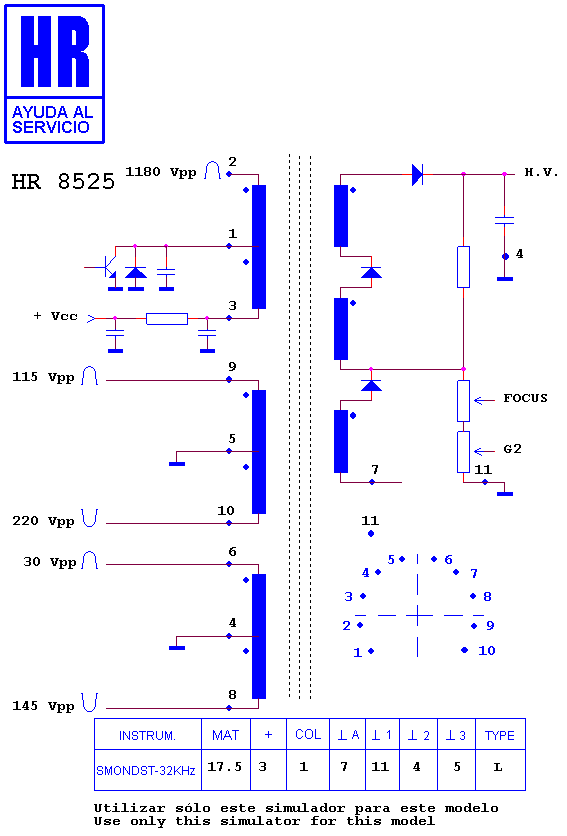

Schematic diagram for HR 8525
schematic

Manufacturer equivalents (4)

1242.0238 · 1242.0238 A · JT 137 · MAT33317

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80200 · HR 6645 · HR 8704

Fitted to (5)

SELTI CS 22.0304 · SELTI MONITOR · SELTI SL 8600 CGA · SELTI SL 8610 · SELTI SL 86101102
