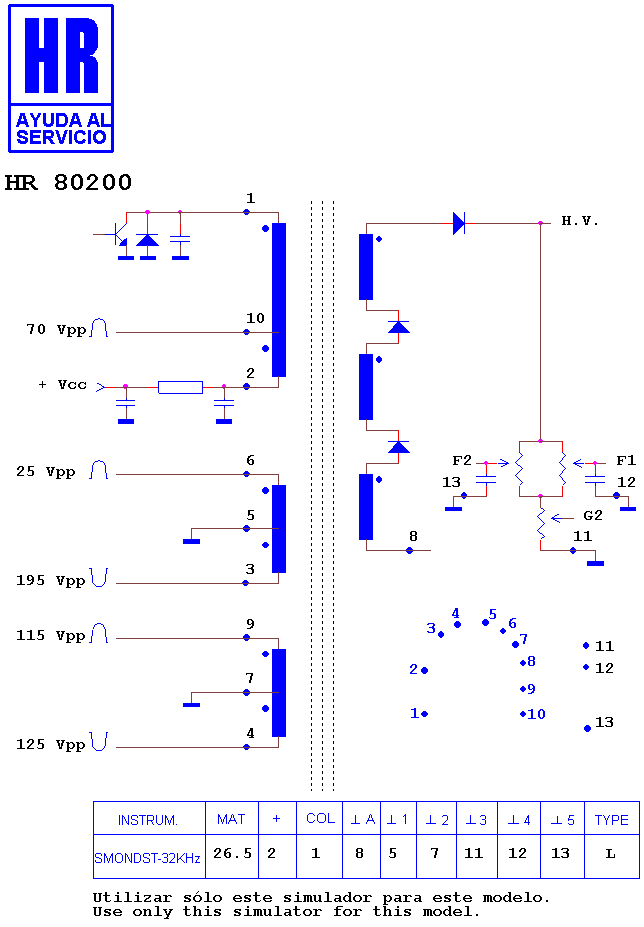

HR 80200

type SM · family 1YD · 26.5 kV maximum anode voltage · L° deflection · 4 windings · 410 g

Manufacturer equivalents (1)

ZTFN 57005 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7729 · HR 7704 · HR 8479 · HR 7171 · HR 8525 · HR 8704 · HR 6485 · HR 8170 · HR 7667

Fitted to (6)

PANASONIC - MATSUSHITA CHASIS EURO 4 H · PANASONIC - MATSUSHITA TX 28 DK 20 F · PANASONIC - MATSUSHITA TX 32 PK 25 · PANASONIC - MATSUSHITA TX 32 PK 25 D · PANASONIC - MATSUSHITA TX 32 PK 25 F · PANASONIC - MATSUSHITA TX 32 PL 10 D

Search this part in the full database
