HR 6116

type ST · family 1BP1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 358 g

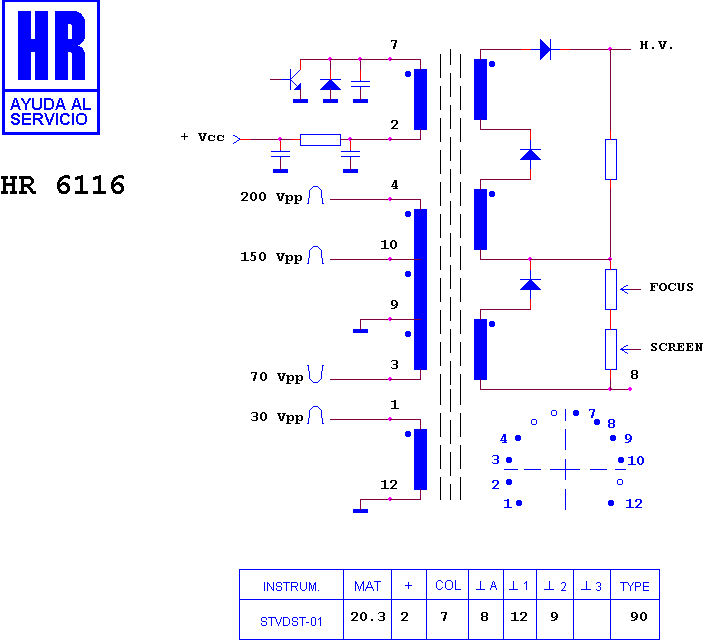

Schematic diagram for HR 6116
schematic

Manufacturer equivalents (3)

37357.00 · 37357.01 · 37357.02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8782 · HR 7158 · HR 7801 · HR 7373 · HR 7241 · HR 8752 · HR 7083 · HR 7789 · HR 7597 · HR 8135 · HR 7511 · HR 7472

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
