HR 7240

type ST · family 1AP1 · 26.1 kV maximum anode voltage · 110° deflection · 5 windings · 347 g

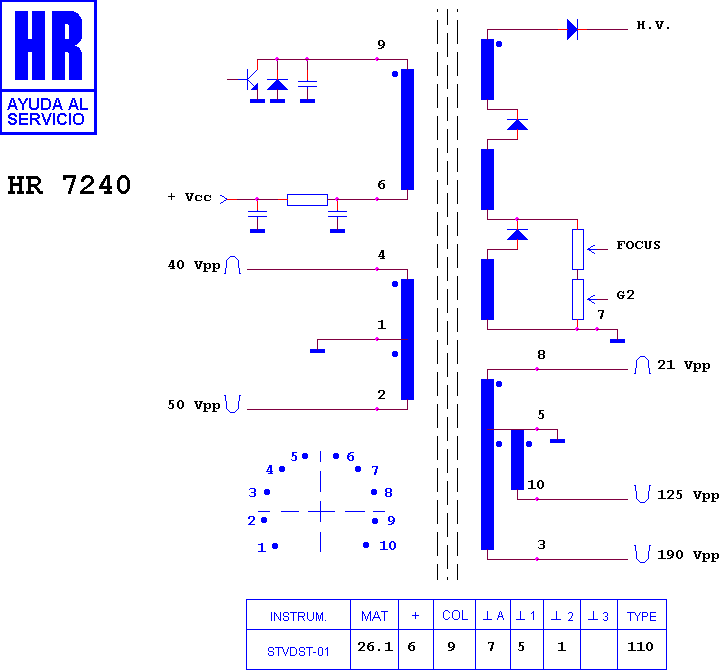

Schematic diagram for HR 7240
schematic

Manufacturer equivalents (1)

RO 143

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7289 · HR 7251 · HR 6365 · HR 6219 · HR 8883 · HR 8576 · HR 8487 · HR 7860 · HR 6068 · HR 7057 · HR 6723 · HR 8204

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
