HR 8133

type ST · family 1YP · 35.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

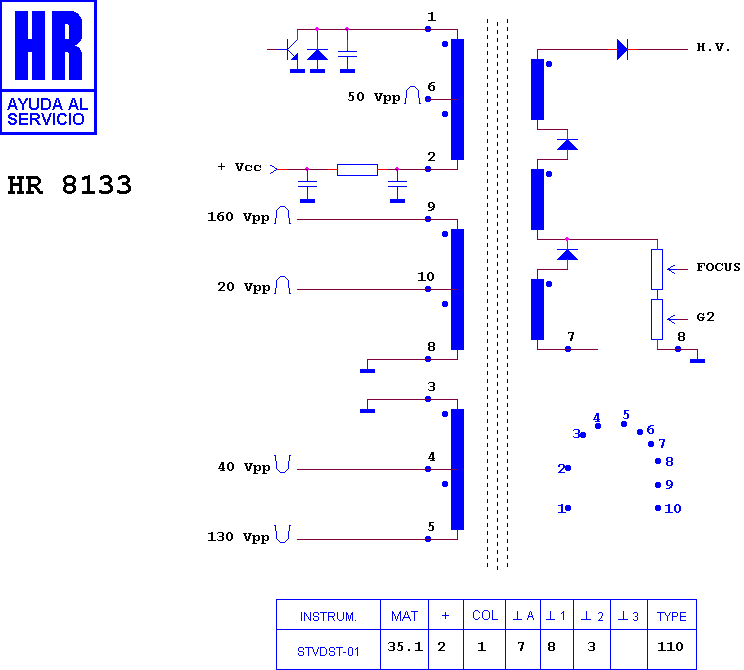

Schematic diagram for HR 8133
schematic

Manufacturer equivalents (5)

043227002 · 0432270022 · 2270022 · 3227002 · 432270022

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7329 · HR 8814 · HR 8935 · HR 6267 · HR 6539 · HR 8477 · HR 6320 · HR 6516

Fitted to (10)

EMERSON 707 A · FIRST LINE CT 7091 · ORION 707 A · ORION 711 VT PAL · ORION 712 VT · ORION COLOR 704 · ORION COLOR 707 · ORION COLOR 707 A · ORION COLOR 712 VT · PROLINE TN 2800
