HR 6539

type ST · family 1BP1 · 16.8 kV maximum anode voltage · 110° deflection · 5 windings · 392 g

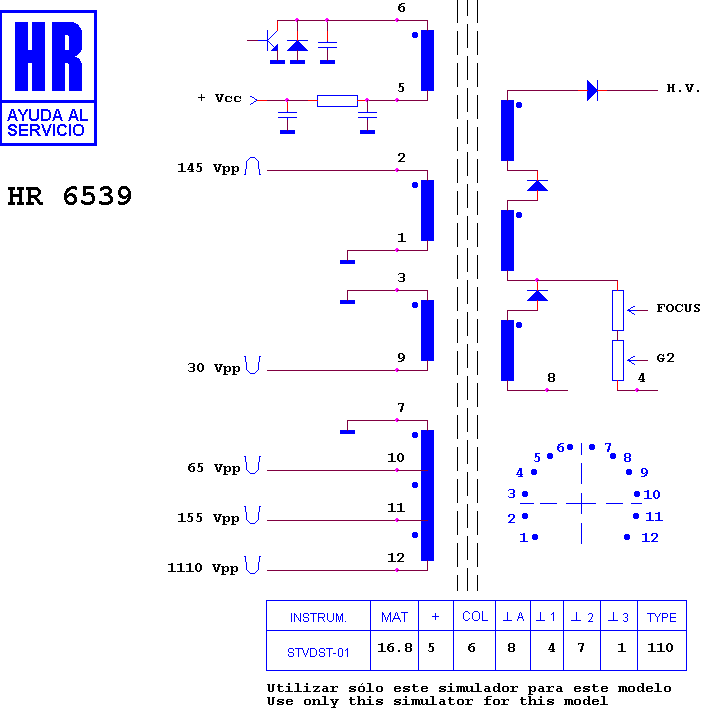

Schematic diagram for HR 6539
schematic

Manufacturer equivalents (1)

2433163

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8086 · HR 7346 · HR 7818 · HR 6516 · HR 8872 · HR 7915 · HR 8524 · HR 8778 · HR 8133 · HR 8028 · HR 6115

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

RGO MONITOR · RGO RGB 1401 A
