HR 7915

type ST · family 1XP1 · 30 kV maximum anode voltage · 110° deflection · 3 windings · 310 g

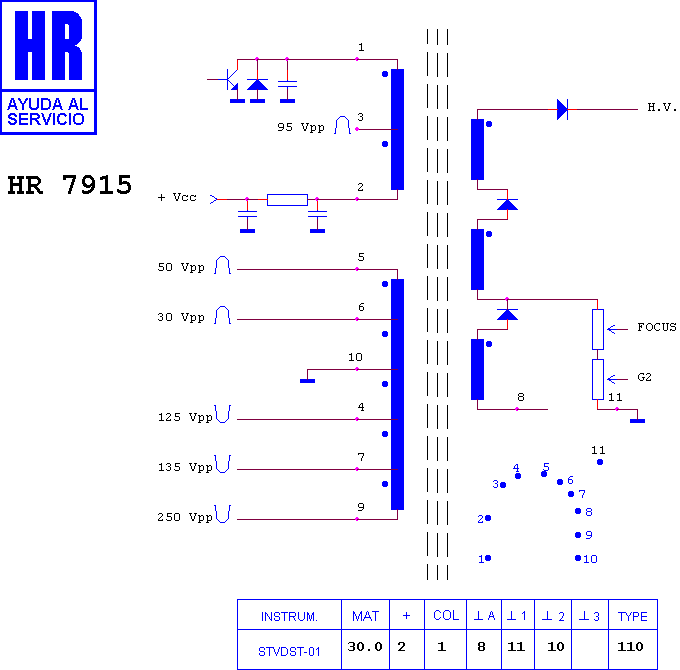

Schematic diagram for HR 7915
schematic

Manufacturer equivalents (3)

CE 41233-00 A · CE 41233-A 00 · CE41233-00C-KD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8712 · HR 6516 · HR 8521 · HR 80317 · HR 8086 · HR 8778 · HR 8875 · HR 8935 · HR 6267 · HR 6539 · HR 7265 · HR 6083

Search this part in the full database
