HR 8712

31.8 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

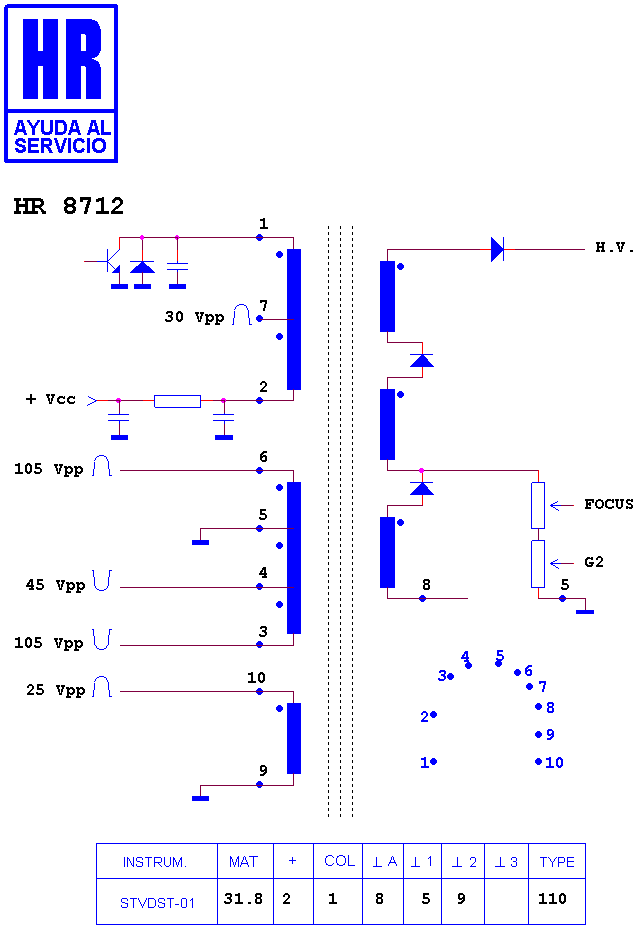

Schematic diagram for HR 8712
schematic (archived)

Manufacturer equivalents (3)

1342.0052 · 1342.0052A · 1352.0006

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80020 · HR 7424 · HR 7915 · HR 8168 · HR 8793 · HR 8317 · HR 6083 · HR 6310 · HR 6312 · HR 7265

Fitted to (1)

PHILIPS CHASIS PV 4
