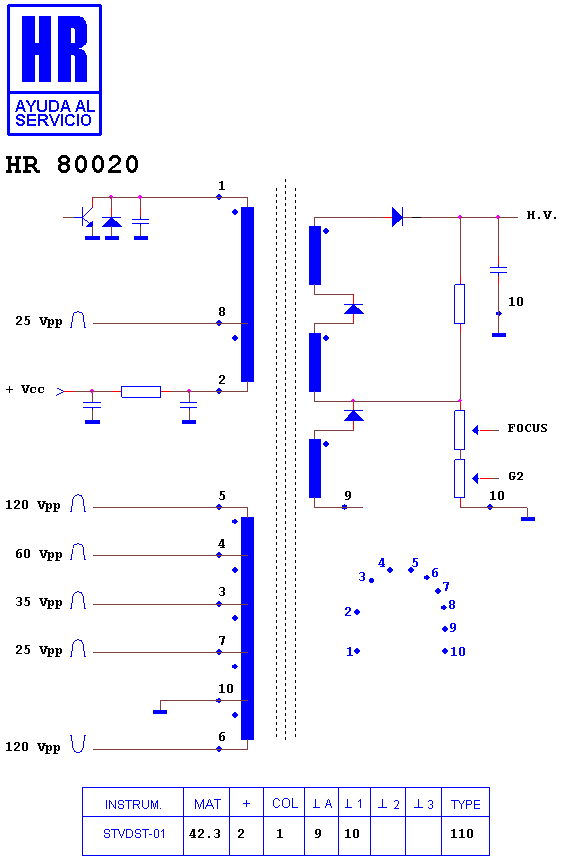

HR 80020

type ST · family 1WP1 · 42.3 kV maximum anode voltage · 110° deflection · 3 windings · 474 g

Manufacturer equivalents (1)

154 238 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8712 · HR 8317 · HR 6310 · HR 6312 · HR 8086 · HR 6469 · HR 8168 · HR 80107 · HR 8032

Fitted to (7)

LG - GOLDSTAR AURA 72 · LG - GOLDSTAR AURA 720 · LG - GOLDSTAR AURA 720 S · LG - GOLDSTAR CF 25 C 48 T · LG - GOLDSTAR CF 28 C 48 T · LG - GOLDSTAR CF 29 C 46 L · LG - GOLDSTAR CF 29 C 48 T
