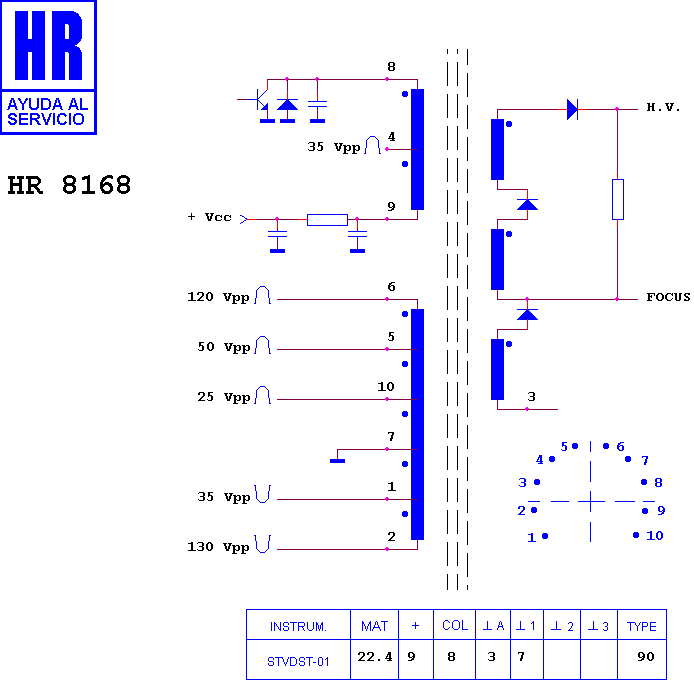

HR 8168

type ST · family 1AS1 · 3 windings · 346 g

Manufacturer equivalents (2)

F 2073 BM · RTRNF2073BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8712 · HR 80020 · HR 8014

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (1)

SHARP 81 GF 63 E
