HR 8014

type ST · family 1AP1 · 19.3 kV maximum anode voltage · 90° deflection · 3 windings · 366 g

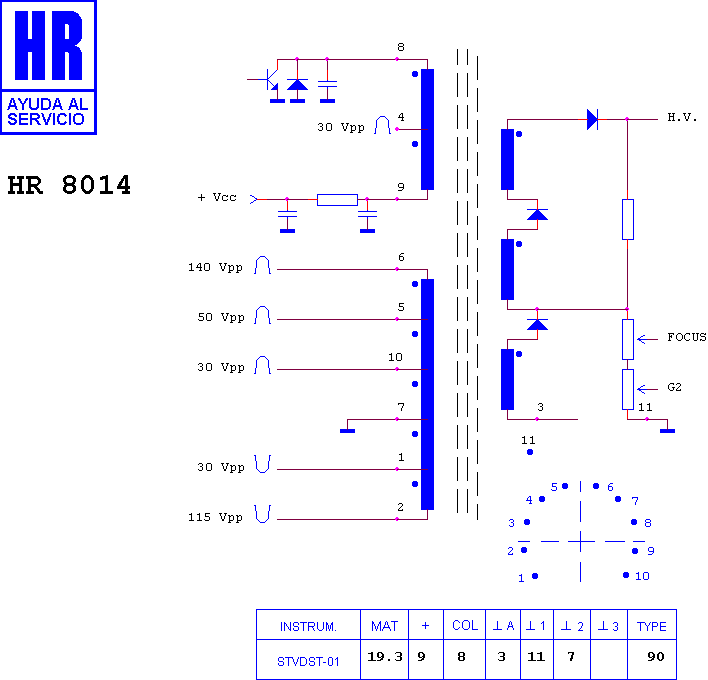

Schematic diagram for HR 8014
schematic

Manufacturer equivalents (4)

F 2059 BM · F 2069 BM · RTRNF2059BMZZ · RTRNF2069BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8168

Fitted to (2)

SHARP 66 FW 53 H · SHARP 66 FW 54 H
