HR 6469

type ST · family 1BS3 · 27.3 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

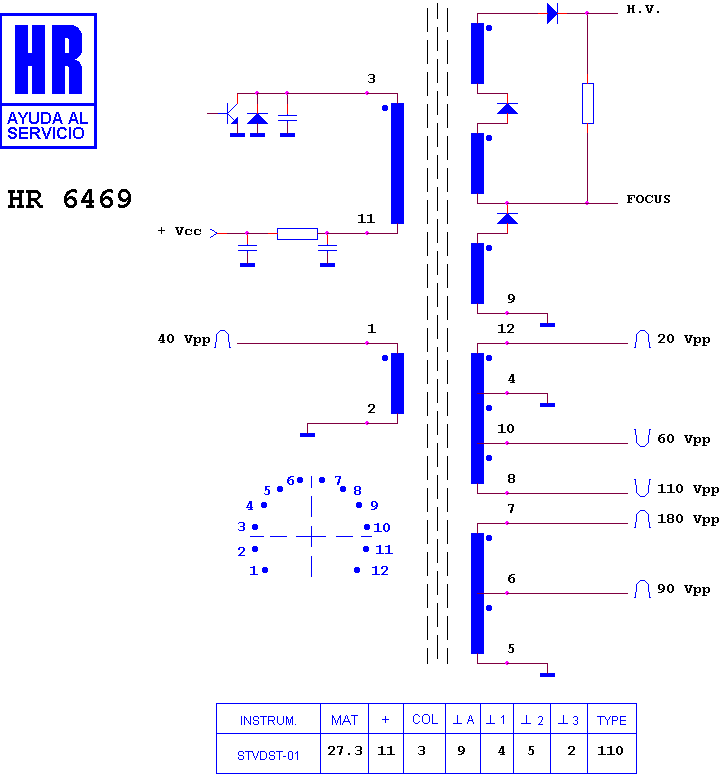

Schematic diagram for HR 6469
schematic

Manufacturer equivalents (3)

40308-17 · 473100.41 · 8014123

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8659 · HR 8071 · HR 8317 · HR 8316 · HR 8549 · HR 80020

Fitted to (1)

BANG & OLUFSEN - B&O MX 700O
