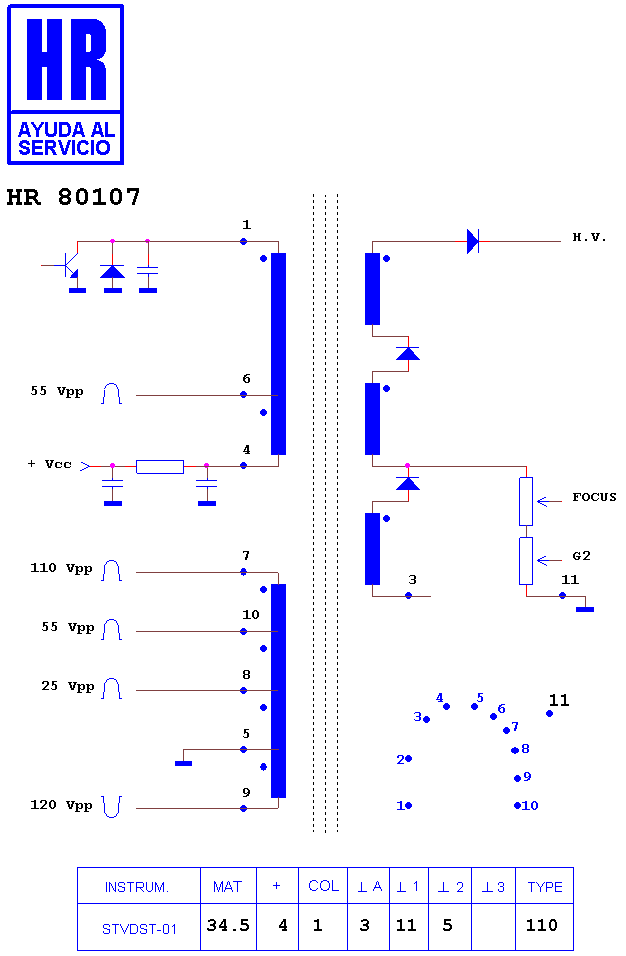

HR 80107

type ST · family 1XP1 · 34.5 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

Manufacturer equivalents (2)

TAT 2704 · TAT 2704 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80123 · HR 80033 · HR 80020 · HR 8071 · HR 8948 · HR 8405 · HR 8288 · HR 8032 · HR 6310 · HR 6312 · HR 8549 · HR 8317

Fitted to (3)

CCE HPS 27 BLK · CCE HPS 2706 · CCE HPS 2706 C
