HR 8086

type ST · family 1AP2 · 30 kV maximum anode voltage · 110° deflection · 3 windings · 320 g

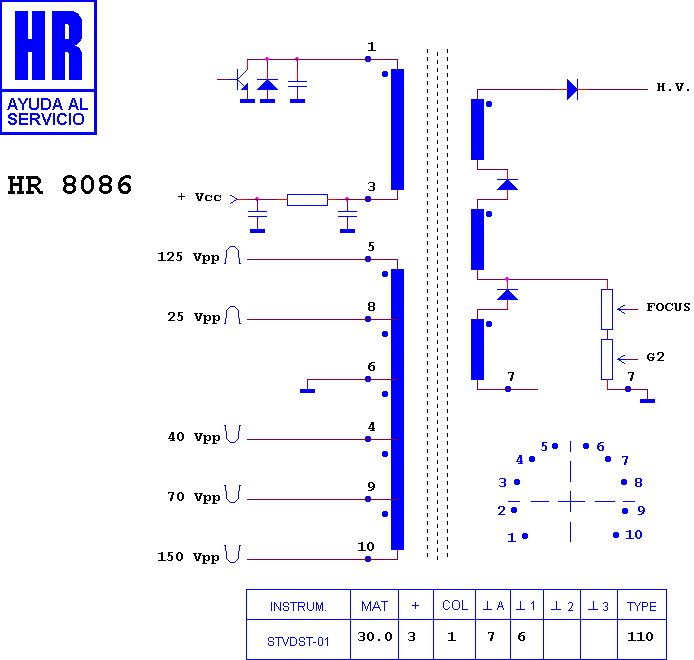

Schematic diagram for HR 8086
schematic

Manufacturer equivalents (5)

2435151 · 610 018 3896 · FAT30258 · FM 0023 · FM 23

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8872 · HR 8778 · HR 6516 · HR 8707 · HR 7915 · HR 80020 · HR 8659 · HR 8521 · HR 7818 · HR 6539 · HR 6115 · HR 8028

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
