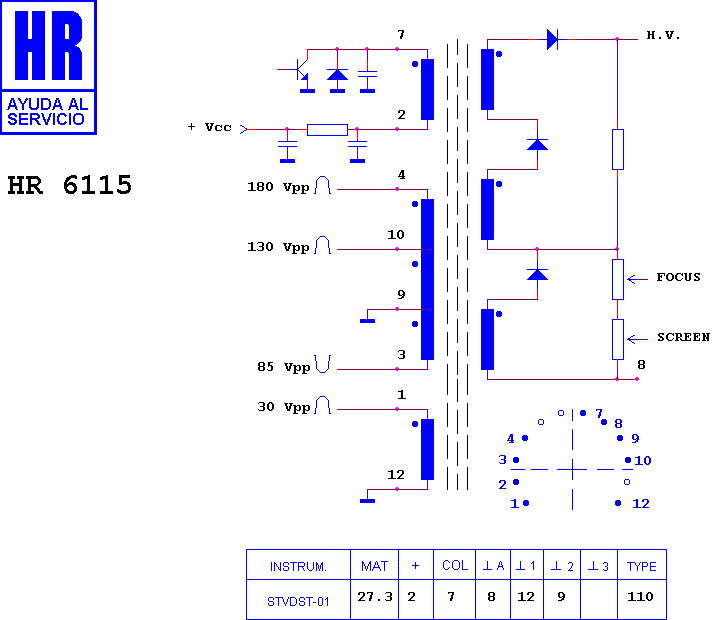

HR 6115

type ST · family 1BP1 · 27.3 kV maximum anode voltage · 110° deflection · 4 windings · 356 g

Manufacturer equivalents (5)

000 697 801 · 37359.00 · 37359.01 · 37359.02 · 697801

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80130 · HR 80031 · HR 6555 · HR 8573 · HR 8968 · HR 6116 · HR 6584 · HR 8892 · HR 8814 · HR 6585 · HR 8518 · HR 8382

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

NOKIA - ITT 87 S.L. · NOKIA - ITT SE · PHILCO SE 87 S.L. · SINGER 87 · SINGER SE S.L.

Search this part in the full database
