HR 8573

type ST · family 1YP · 31.8 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

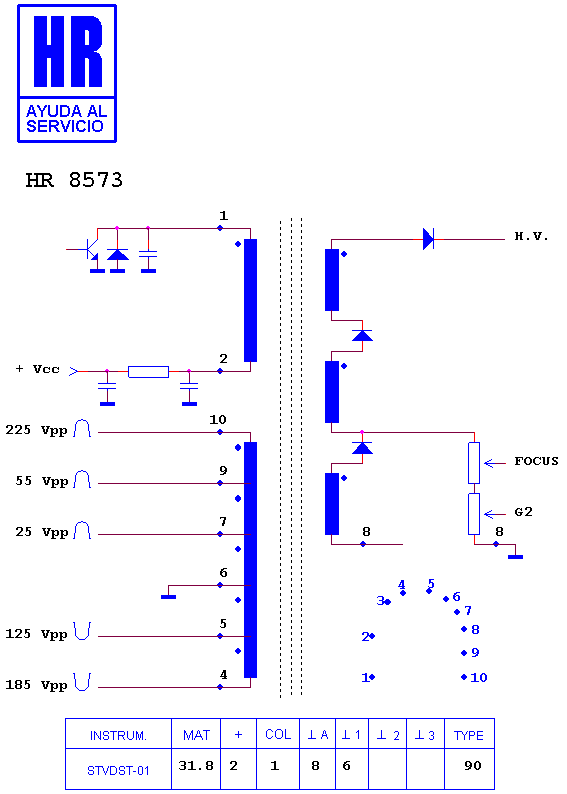

Schematic diagram for HR 8573
schematic

Manufacturer equivalents (4)

101-226002-01 · 101-226003-06 · 101-228003-06 · TLF70239

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7809 · HR 7633 · HR 8928 · HR 7970 · HR 7657 · HR 7656 · HR 7722 · HR 8087 · HR 7854 · HR 7772 · HR 7655 · HR 7811

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

AKAI CT 2867 · AKAI CT 2867 AT
