HR 6584

type ST · family 1BP1 · 32.1 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

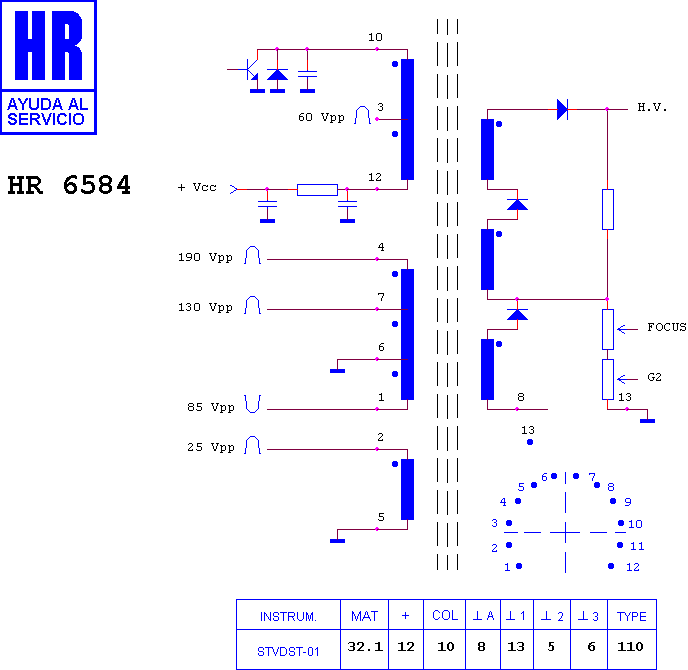

Schematic diagram for HR 6584
schematic

Manufacturer equivalents (5)

1182.1387 · 304068 · 632095000 · FAT30406 · KN30406

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6583 · HR 80085 · HR 6555 · HR 80116 · HR 8860 · HR 8872 · HR 8879 · HR 8418 · HR 8166 · HR 8862 · HR 8380 · HR 8833

Fitted to (2)

NECKERMANN 765/325 · SELECO TESI 29 S FLAT
