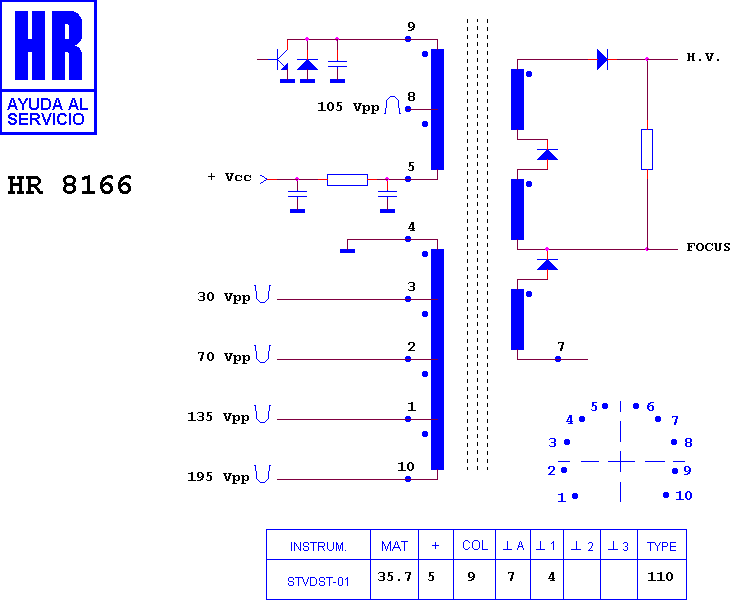

HR 8166

type ST · family 1AS1 · 35.7 kV maximum anode voltage · 110° deflection · 3 windings · 350 g

Manufacturer equivalents (3)

FAT 30138 · M 10-06 · ME/6479-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8886 · HR 6155 · HR 80040 · HR 8707 · HR 80021 · HR 80116 · HR 7326 · HR 6060 · HR 80138 · HR 6584 · HR 8028 · HR 8831

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Search this part in the full database
