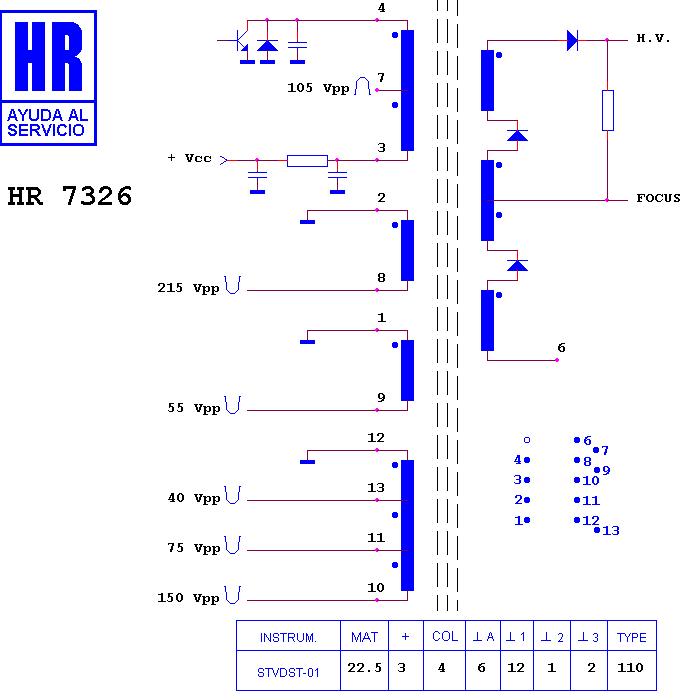

HR 7326

type ST · family 1OS1 · 22.5 kV maximum anode voltage · 110° deflection · 5 windings · 294 g

Manufacturer equivalents (3)

0-2223-078 · 2223078 · AT 110/25/29

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8166 · HR 7231 · HR 8769 · HR 80077 · HR 80320 · HR 8703 · HR 8028 · HR 7954

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control

Fitted to (1)

WALTHAM WT 656
