HR 8703

type ST · family 1VP2 · 38.4 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

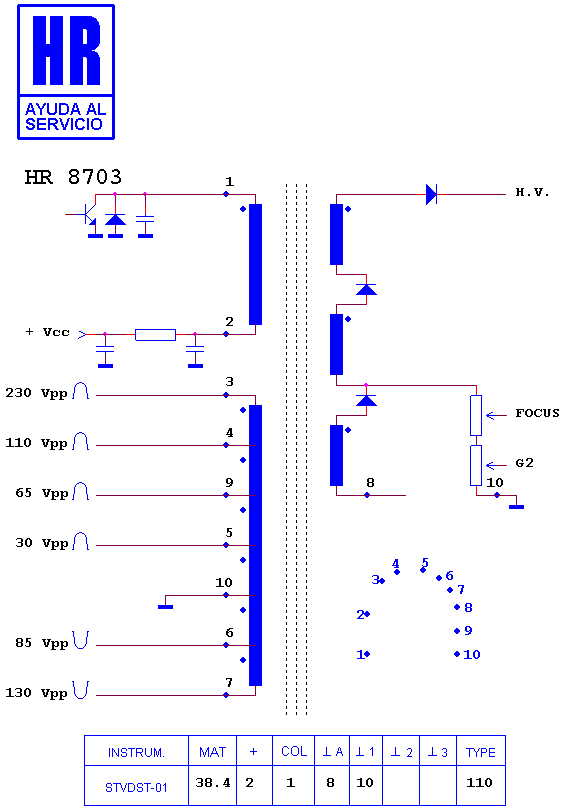

Schematic diagram for HR 8703
schematic (archived)

Manufacturer equivalents (42)

1342.0043 · 1342.0043 A · 1342.0043 B · 1342.00432 · 1342.00432 A · 1372.0084 · 138 21421 · 13820681 · 13821241 · 14010594 · 14010667 · 2422 531 02506 · 242253102467 · 242253102469 · 3128 138 21421 · 312813820681 · 34567910 · 482214010594 · 482214010667 · 5100-051101-04 · 5100-051101-11 · 5110-051101-11 · 531 02506 · 53102467 · 53102469 · AT2078/20681 · AT2078/20682 · BSC25-0195 · BSC25-0294A · BSC25-05N1430 · BSC25N0567 · BSC25N0822 · BSC30-0507 · CF0801-5501 · HR 8703 · JF0501-19530 · JF0501-2132 · JF0501-2132B · JF0501-2134 · JF0501-2134B · OV 2076-21421 · OV2076/31781

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7174 · HR 7222 · HR 80124 · HR 80039 · HR 80028 · HR 8900 · HR 8388 · HR 6730 · HR 80320 · HR 6683 · HR 7326 · HR 80109

Fitted to (10)

MAGNAVOX MS 3250 C 121 · MAGNAVOX MS 3250 CK 21 · MAGNAVOX MS 3252 S 431 · PHILIPS 32 PT 553 · PHILIPS 32 PT 553/37 G · PHILIPS 32 PT 5535 · PHILIPS 32 PT 5535/37 G · PHILIPS 57 P 355 S 321 · PHILIPS MS 3250 CK 21 · PHILIPS MS 3252 S 431
