HR 80109

31.2 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

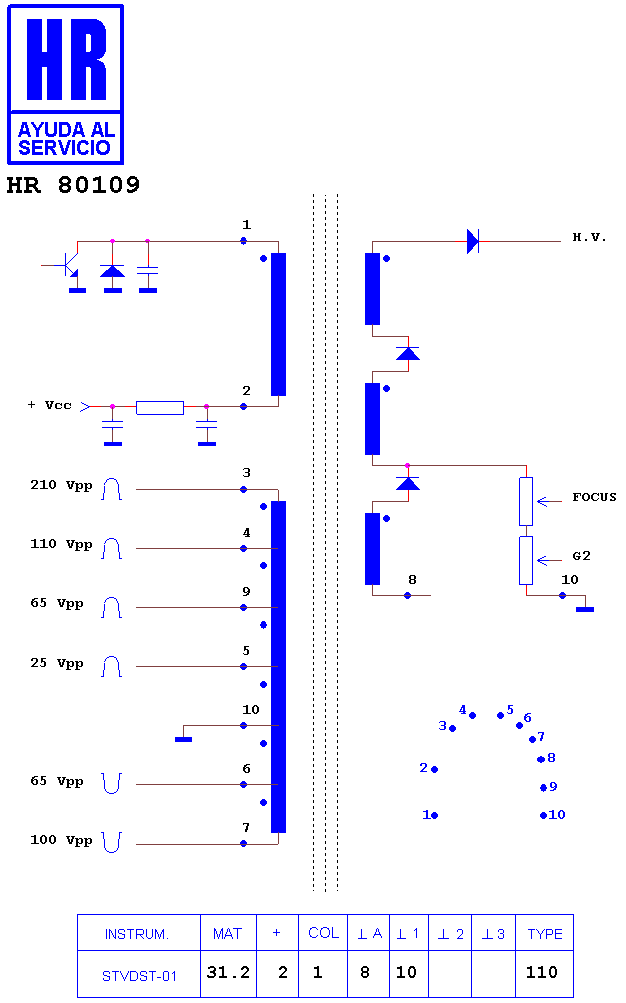

Schematic diagram for HR 80109
schematic (archived)

Manufacturer equivalents (4)

13820732 · 20732 · 312813820732 · OV2076/20732

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7174 · HR 7222 · HR 8900 · HR 8703 · HR 80124 · HR 80039 · HR 8951 · HR 8337 · HR 7614 · HR 8275 · HR 8388 · HR 8552

Fitted to (7)

PHILIPS 29 PT 554 · PHILIPS 29 PT 554 A · PHILIPS 29 PT 554 A/7 · PHILIPS 33 PT 574 A · PHILIPS 33 PT 574 A/77B · PHILIPS 33 PT 574 A/78R · PHILIPS CHASIS L 9.1 A
