HR 7614

type ST · family 1YP · 33.8 kV maximum anode voltage · 110° deflection · 3 windings · 388 g

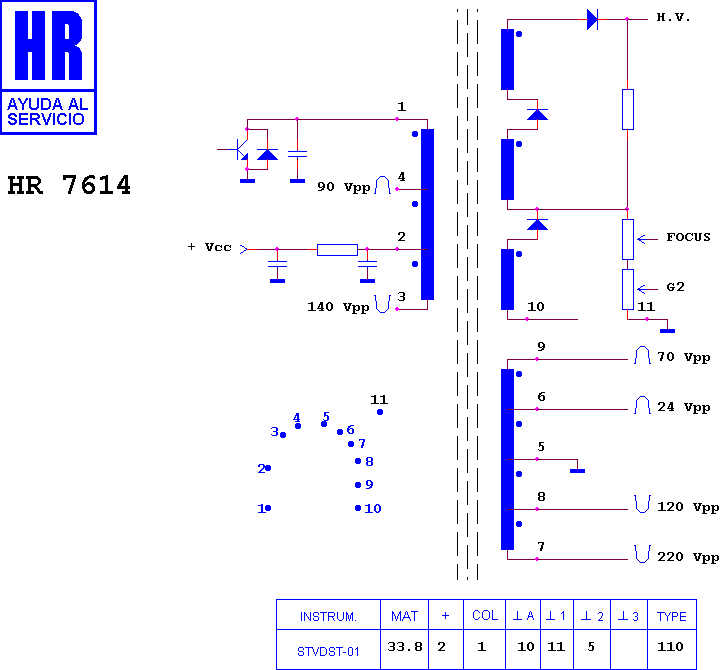

Schematic diagram for HR 7614
schematic

Manufacturer equivalents (7)

2859 200 024 · 32859200024 · AA 26-30001 M · FAT30217 · FCR 29 A 014 · FCR 29 A 014 R · FM 2812

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8393 · HR 8703 · HR 7222 · HR 7174 · HR 8388 · HR 6167 · HR 8823 · HR 80109 · HR 80028 · HR 80320 · HR 8390 · HR 80069

Fitted to (3)

NOBLEX TVC 29" · SAMSUNG CN 7230 W · SAMSUNG CT 7271 BP
