HR 7913

type ST · family 1XP · 26.7 kV maximum anode voltage · 110° deflection · 5 windings · 268 g

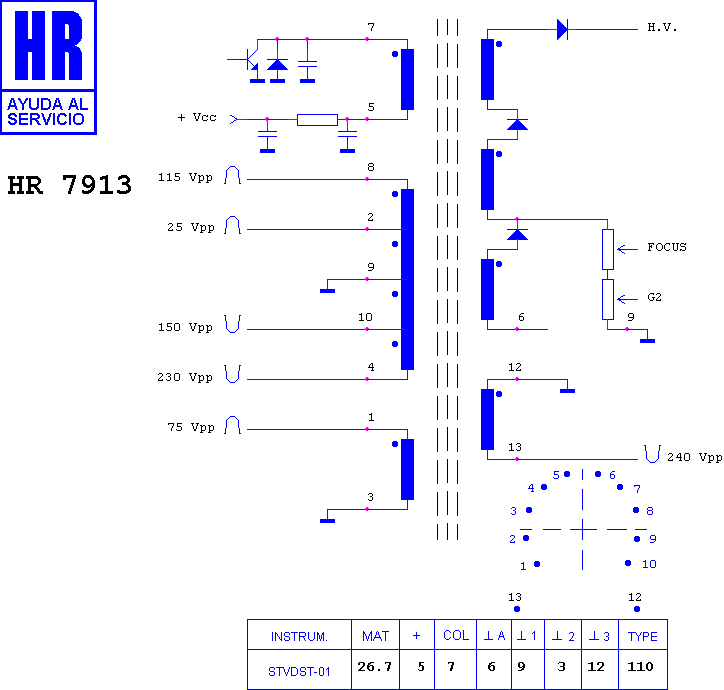

Schematic diagram for HR 7913
schematic

Manufacturer equivalents (6)

043214008 · 0432140081 · 32114008 · 3214008 · 43214008 · 432140081

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7743 · HR 8429 · HR 7863 · HR 8825 · HR 80225 · HR 6036 · HR 8822 · HR 8338 · HR 6070 · HR 8401 · HR 8393 · HR 6375

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

EMERSON FCR 138 · EMERSON RCR 138

Search this part in the full database
