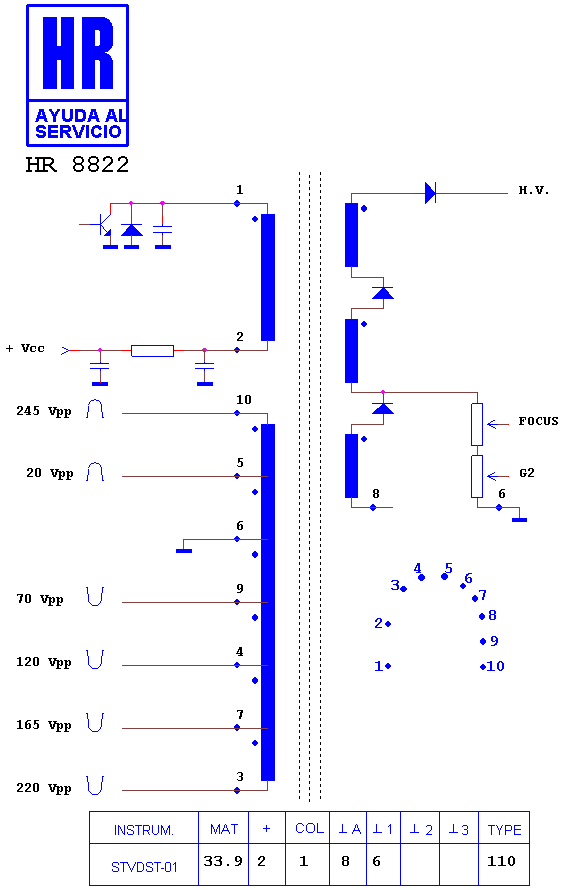

HR 8822

type ST · family 1YP · 33.9 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

KFT 4 AB 143 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8657 · HR 8401 · HR 8429 · HR 6070 · HR 80077 · HR 6558 · HR 6036 · HR 6077 · HR 7864 · HR 8825 · HR 7913 · HR 7743

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

HITACHI 27 CX 28 B · HITACHI 27 CX 28 B 511 · PANASONIC - MATSUSHITA CTG 2979 E · PANASONIC - MATSUSHITA TC 29 A 11 · PANASONIC - MATSUSHITA TC 29 A 9 A · PANASONIC - MATSUSHITA TC 29 G 91
