HR 7864

type ST · family 1CAP · 32.7 kV maximum anode voltage · 110° deflection · 4 windings · 274 g

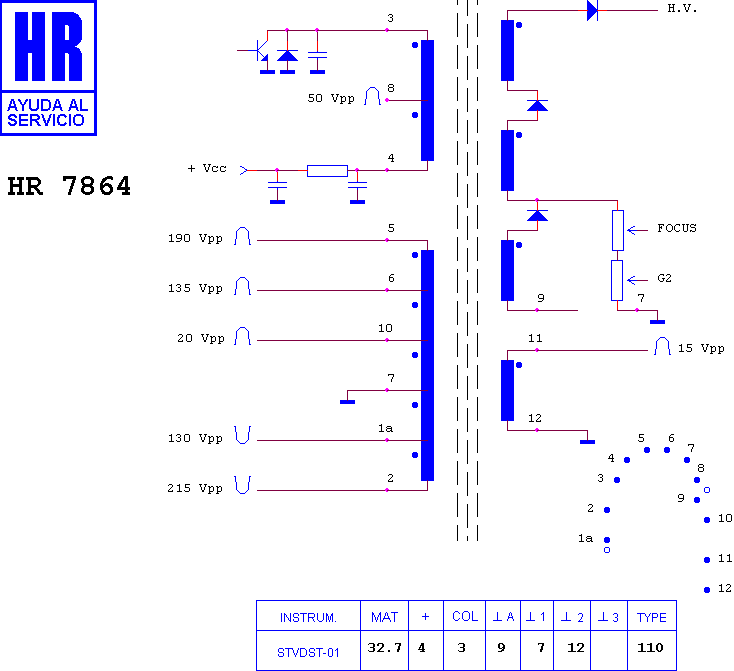

Schematic diagram for HR 7864
schematic

Manufacturer equivalents (2)

F 1703 CE · RTRNF1703CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8657 · HR 8401 · HR 7199 · HR 8429 · HR 8822 · HR 8825 · HR 6657 · HR 7626 · HR 6687 · HR 7913 · HR 7863 · HR 80225

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SHARP C 4270 SN · SHARP C 4276 SN
