HR 6199

type ST · family 1BP1 · 26.4 kV maximum anode voltage · 110° deflection · 4 windings · 366 g

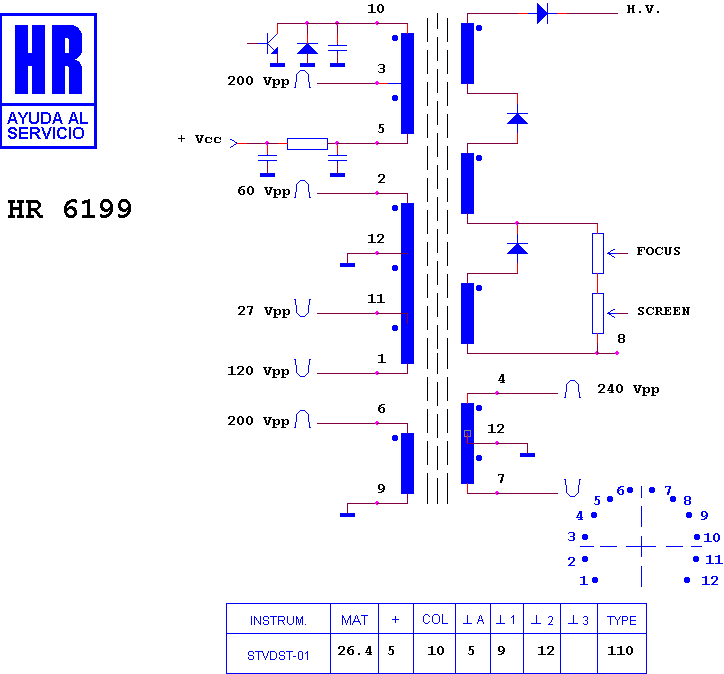

Schematic diagram for HR 6199
schematic
Schematic diagram for HR 6199
schematic (archived)

Manufacturer equivalents (1)

HR6199

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6036 · HR 8825 · HR 7626 · HR 6204 · HR 6070 · HR 8401 · HR 80225 · HR 80077 · HR 7863 · HR 8822 · HR 8429 · HR 7913

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
