HR 8825

35.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

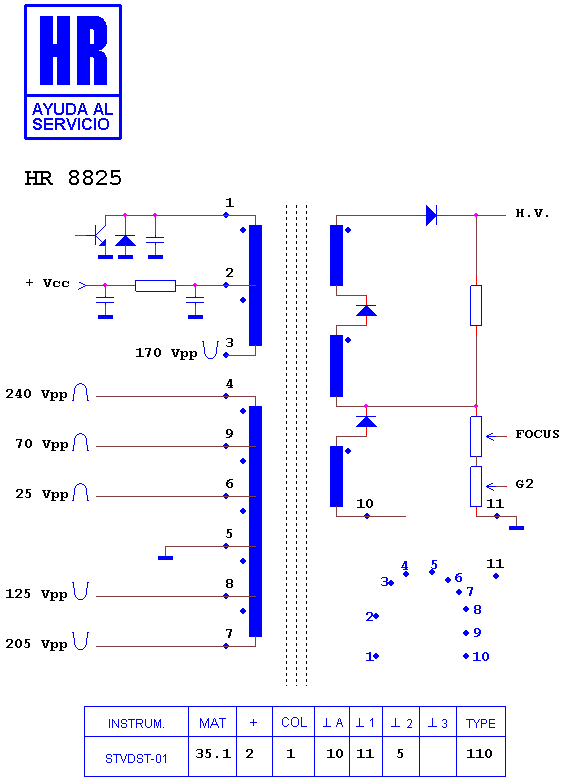

Schematic diagram for HR 8825
schematic (archived)

Manufacturer equivalents (3)

AA26-30001P · FCR25A009 · FCR25A009R

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8401 · HR 7423 · HR 8657 · HR 8393 · HR 8429 · HR 8822 · HR 7758 · HR 7699 · HR 6070 · HR 8390 · HR 7930 · HR 5732

Fitted to (4)

SAMSUNG CB 6271 T · SAMSUNG CT 2570 B · SAMSUNG CX 7226 ZN · SAMSUNG TV 595
