HR 7423

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

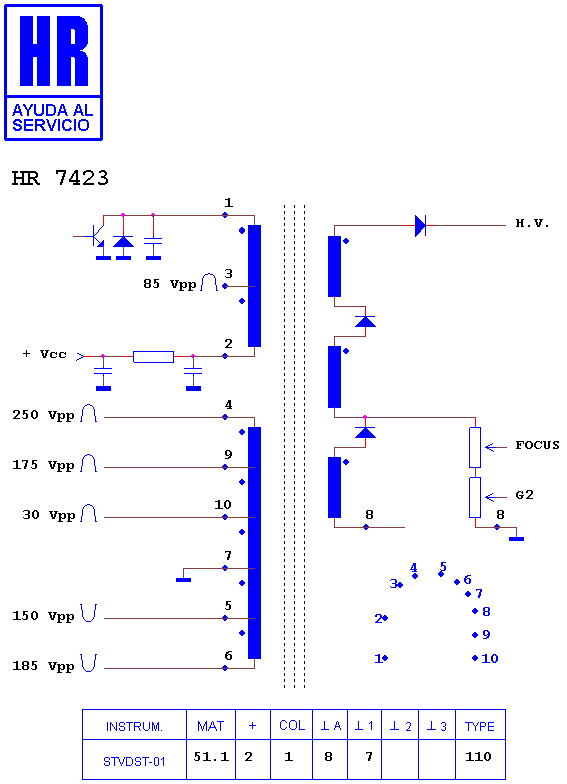

Schematic diagram for HR 7423
schematic (archived)

Manufacturer equivalents (3)

BSC28-4002A · TT058+AA025 · TT058+AA628

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7758 · HR 8825 · HR 5736 · HR 5732 · HR 7743 · HR 6453 · HR 6036 · HR 7863 · HR 6687

Fitted to (4)

TED 9422 · TED 9427 · TED 9427 C · TED 9628
