HR 7743

type ST · family 1XP · 26.1 kV maximum anode voltage · 110° deflection · 5 windings · 268 g

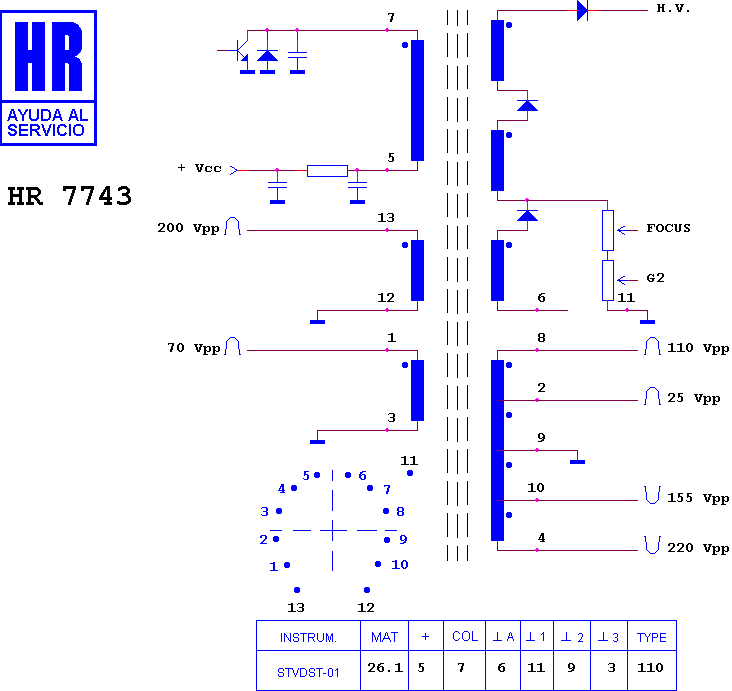

Schematic diagram for HR 7743
schematic

Manufacturer equivalents (6)

043214003 · 0432140031 · 32114003 · 3214003 · 43214003 · 432140031

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7199 · HR 8508 · HR 8390 · HR 8619 · HR 7913 · HR 8825 · HR 6036 · HR 7863 · HR 8429 · HR 8822 · HR 6199 · HR 80225

Fitted to (2)

EMERSON EC 134 C-A · EMERSON TA 36 X 02594
