HR 8508

type ST · family 1NP1 · 29.7 kV maximum anode voltage · 110° deflection · 3 windings · 50 g

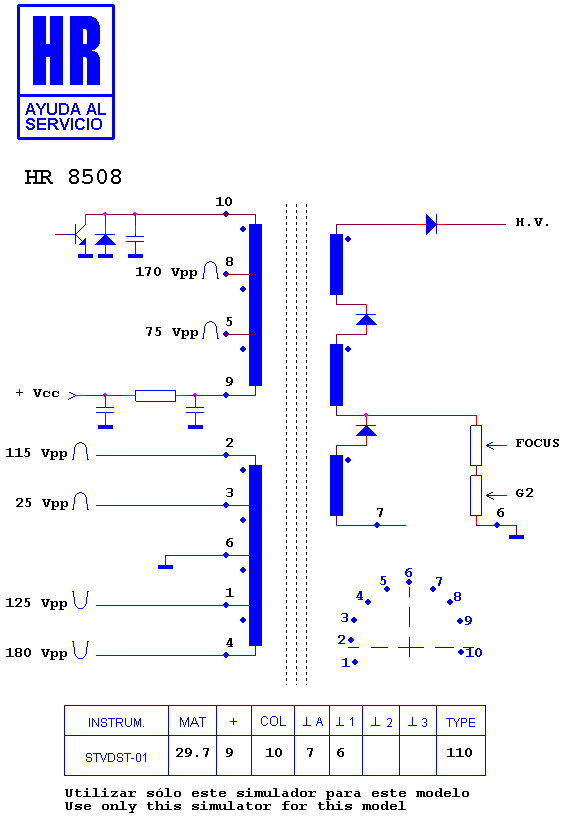

Schematic diagram for HR 8508
schematic

Manufacturer equivalents (3)

DNF-FE 2004 · FE 2004 · KFS 60291

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6700 · HR 5741 · HR 7758 · HR 7743

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

KORTEC KT 1420 C · KORTEC MONITOR
