HR 6700

43.2 kV maximum anode voltage · 110° deflection · 4 windings · 414 g

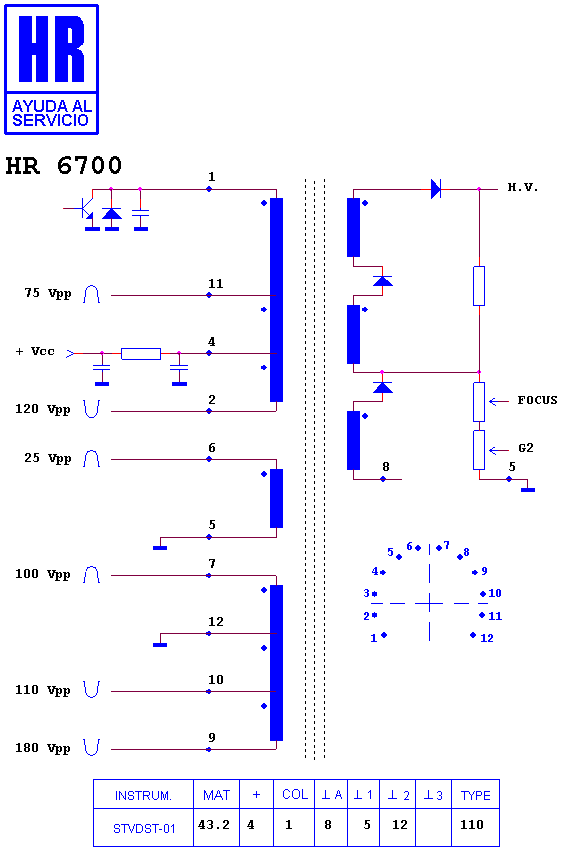

Schematic diagram for HR 6700
schematic (archived)

Manufacturer equivalents (10)

003321103 · 1182.1327 · 444500031 · 444500031A2 · 444500128 · FAT30559 · H32-03 · KN30559 · RO403 · TR403

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6453 · HR 8508 · HR 6180

Fitted to (10)

METZ 6389 · METZ 84 TA 88 · METZ 84 TA 88 · METZ CHASIS 693 100 HZ · METZ CHASIS 693 G · METZ CHASIS 693 G-51509 · METZ CHASIS 693 GA-4017 · METZ CHASIS 693 GA-4084 · METZ CHASIS 693 GA-5100 · METZ MONDIAL S PIP
