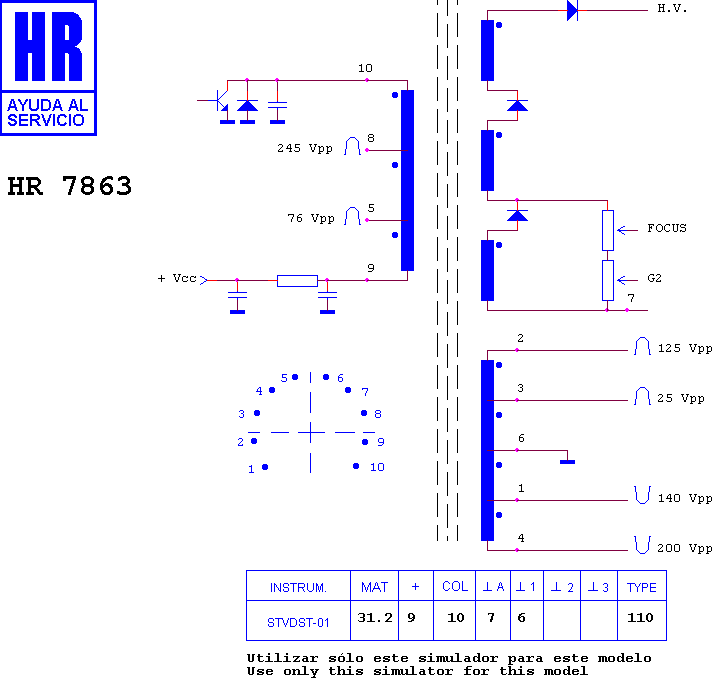

HR 7863

type ST · family 1NP1 · 31.2 kV maximum anode voltage · 110° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

FCC 1415 SL

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8619 · HR 8338 · HR 8825 · HR 80077 · HR 8401 · HR 7423 · HR 6139 · HR 80225 · HR 6077 · HR 8429 · HR 8393 · HR 6070

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

OLIVETTI CPM-PAC · OLIVETTI MONITOR
