HR 8338

type ST · family 1AP1 · 27.9 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

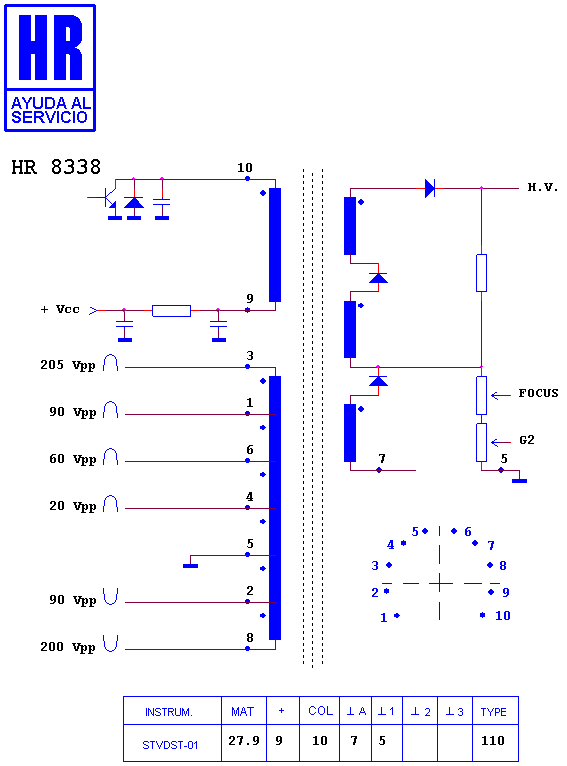

Schematic diagram for HR 8338
schematic

Manufacturer equivalents (6)

1352.3023 · 1352.3023 B · 1352.3023A · 276-28717 · FAT30820 · HR 8338

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7863 · HR 8619 · HR 8393 · HR 8730 · HR 80077 · HR 80069 · HR 8390 · HR 8822 · HR 7913 · HR 80225

Fitted to (2)

LOEWE / LOEWE-OPTA 59 432 L · LOEWE / LOEWE-OPTA PROFIL 3470
