HR 80069

type ST · family 1VP2 · 47.1 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

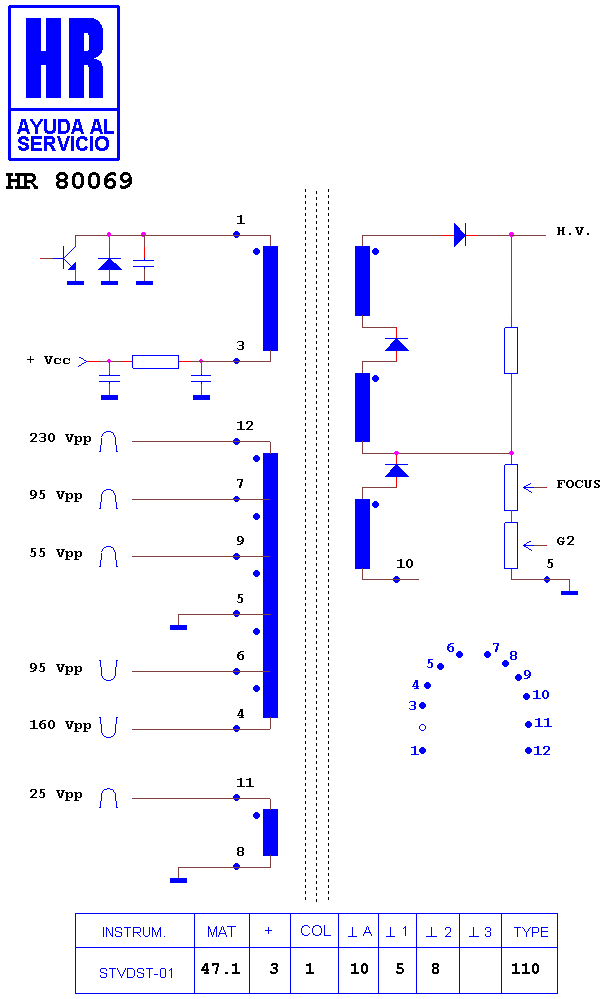

Schematic diagram for HR 80069
schematic (archived)

Manufacturer equivalents (7)

040.019 EL 1 · 040.019R-E1 · 1362.5010 · 1362.5010 B · 75955.113.31 · 75955.113.3100 · HR 80069

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80077 · HR 8800 · HR 6730 · HR 6717 · HR 7429 · HR 6721 · HR 6139 · HR 80028 · HR 80124 · HR 6725 · HR 8430 · HR 8338

Fitted to (3)

MAGNUM TV 7051 · MEDION MD 42211 A · ORION TV 21171 SI
