HR 8800

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

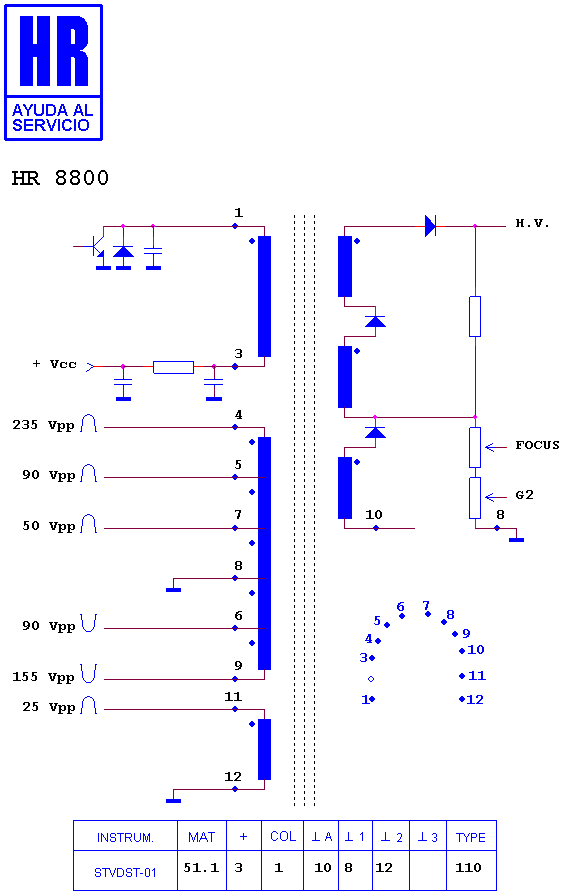

Schematic diagram for HR 8800
schematic (archived)

Manufacturer equivalents (16)

00020306 · 003323108 · 003323109 · 1372.0045 · 1372.00450 · 1372.00452 · 1372.00452 A · 1372.004520 · 1372.0045A · 1372.0045C · 255.579.2 · 2555795 · 30007803 · HR 8800 · RO842 · TR842

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8337 · HR 80028 · HR 8823 · HR 80124 · HR 8552 · HR 8769 · HR 8393 · HR 6167 · HR 6730 · HR 6717 · HR 6721 · HR 6725

Fitted to (19)

METZ 82 TG 92 · QUELLE 247.813.9 · SCHAUB-LORENZ 8070 · SCHAUB-LORENZ SL · SEG CHASIS 11 AK 19 P 4 · SEG CHASIS 11 AK 28 · SEG HAMBURG · SEG HAMBURG PREMIUM · UNIVERSUM 321.093 7 · UNIVERSUM CHASIS 11 AK 28 · UNIVERSUM CHASIS 11 AK 41 A 2 · UNIVERSUM FT 81015 · UNIVERSUM FT 81017 · UNIVERSUM FT 81022 · UNIVERSUM FT 81031 · VESTEL CHASIS 11 AK 28 · VESTEL CHASIS 11 AK 28-3 · WATSON FA 3251 TS · WATSON FA 7151
