HR 6725

42.3 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

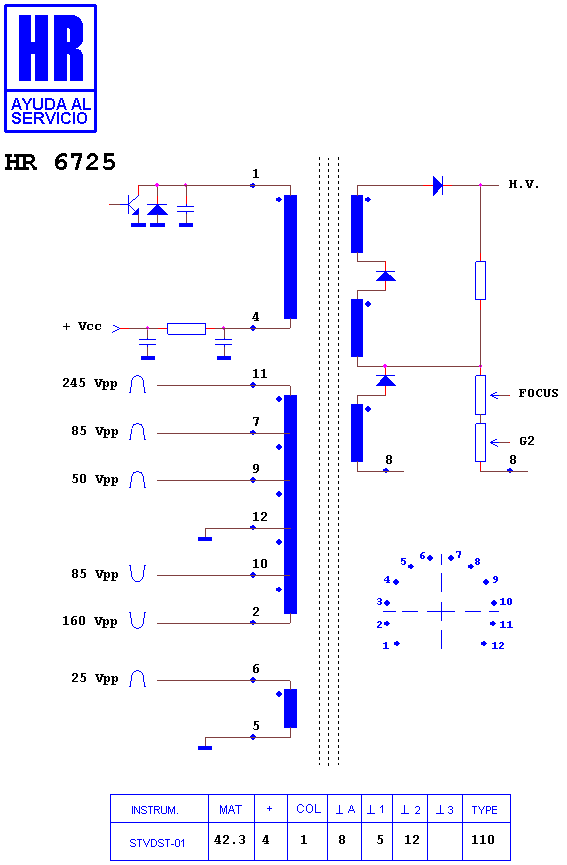

Schematic diagram for HR 6725
schematic (archived)

Manufacturer equivalents (5)

003321147 · 058.335TR2 · H32-52 · RO706 · TR706

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6721 · HR 6730 · HR 6717 · HR 8800 · HR 80069 · HR 6159 · HR 8337 · HR 6045 · HR 7231 · HR 6386 · HR 6155 · HR 7087

Fitted to (4)

BEKO - BEKOTEKNIK CHASIS 20.2 110 · BEKO - BEKOTEKNIK CHASIS 20.2 33 · GRAETZ CHASIS 20.2 110 · GRAETZ GR 33 TL 6 S

Search this part in the full database
