HR 8552

type ST · family 1XP1 · 25.8 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

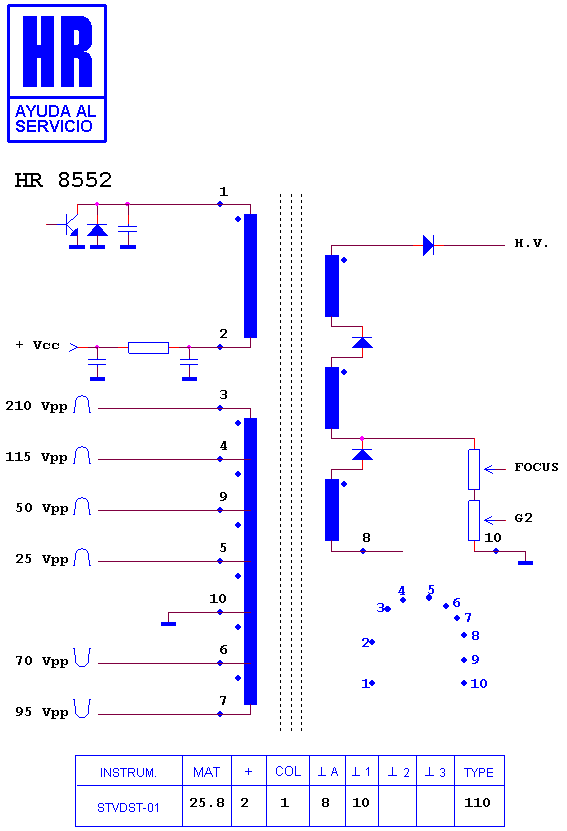

Schematic diagram for HR 8552
schematic

Manufacturer equivalents (12)

1342.0028 · 1342.0028 D · 1342.00282 · 1342.00282A · 1342.00282S · 1342.0028A · 2422 531 02431 · 40348-8 · 40348A-8 · 531 02431 · FAT30818 · KN35008N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8337 · HR 80124 · HR 8769 · HR 8900 · HR 8419 · HR 80109 · HR 8703 · HR 7174 · HR 80039 · HR 8388 · HR 7222 · HR 8800

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

PHILIPS 21 PT 5305/01
