HR 7222

43.2 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

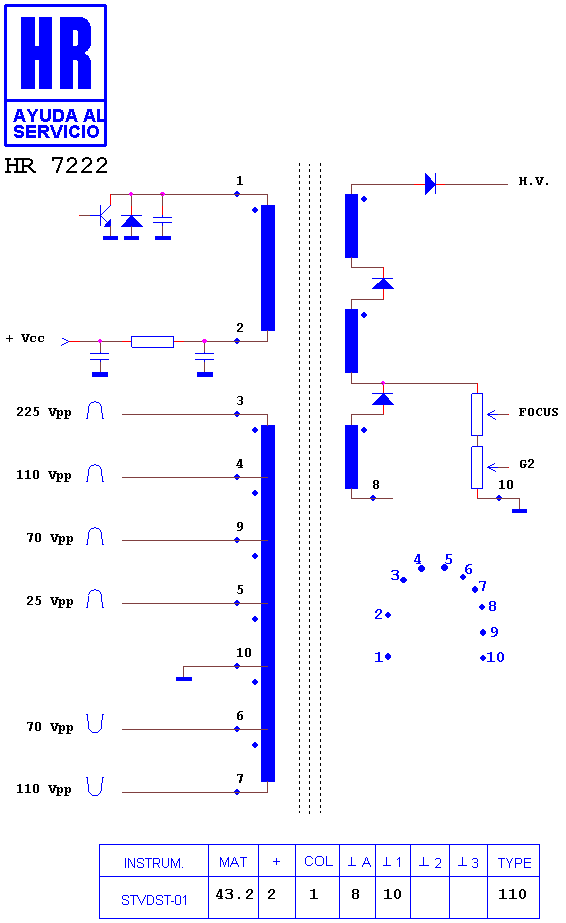

Schematic diagram for HR 7222
schematic (archived)

Manufacturer equivalents (12)

242253102471 · 242253102611 · 53102471 · 53102611 · 9965 000 30248 · BSC27-5906 · F03A.0006 · HR 7222 · JF0501-2135 · JF0501-2135B · JF0501-21835 · JF0501-21835B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7174 · HR 8951 · HR 8275 · HR 80109 · HR 8900 · HR 8388 · HR 8823 · HR 8419 · HR 8552 · HR 8703 · HR 8430 · HR 8769

Fitted to (12)

PHILIPS 25 PT 2252 · PHILIPS 25 PT 2252/67 R · PHILIPS 25 PT 5531 · PHILIPS 25 PT 5531/78 R · PHILIPS 25 PT 5541 · PHILIPS 25 PT 5541/77 · PHILIPS 29 PT 4723 · PHILIPS 29 PT 4723/23 R · PHILIPS 29 PT 5431 · PHILIPS 29 PT 5431/85 R · PHILIPS 29 PT 5631 · PHILIPS 29 PT 5631/85 R
