HR 7387

type ST · family 1ACP · 29.4 kV maximum anode voltage · 110° deflection · 3 windings · 402 g

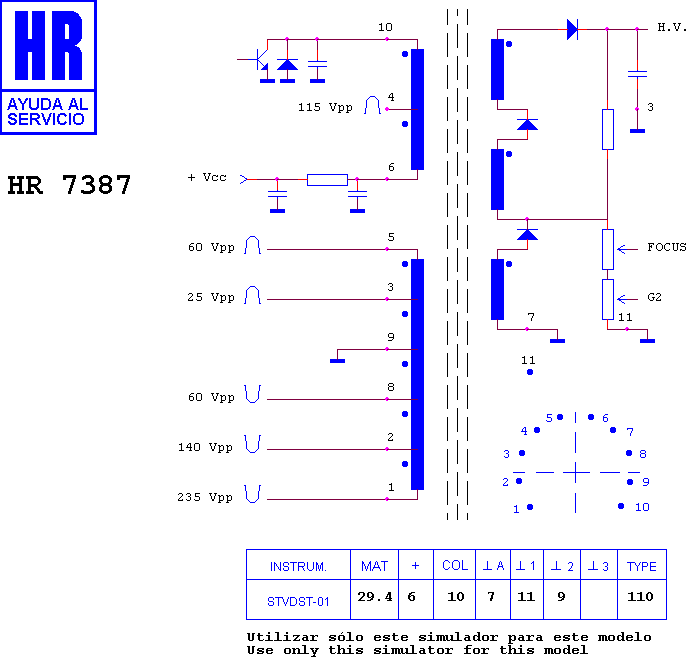

Schematic diagram for HR 7387
schematic

Manufacturer equivalents (4)

1192.0547 · 1242.5008 · JT 140 · JT138

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6270 · HR 8882 · HR 7222 · HR 80109 · HR 8337 · HR 7429 · HR 6647 · HR 8080 · HR 8730 · HR 80320 · HR 8703 · HR 8275

Fitted to (4)

SELTI MONITOR · SELTI SL 152 · SIVIT MONITOR · SIVIT SL 7500
