HR 7429

47.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

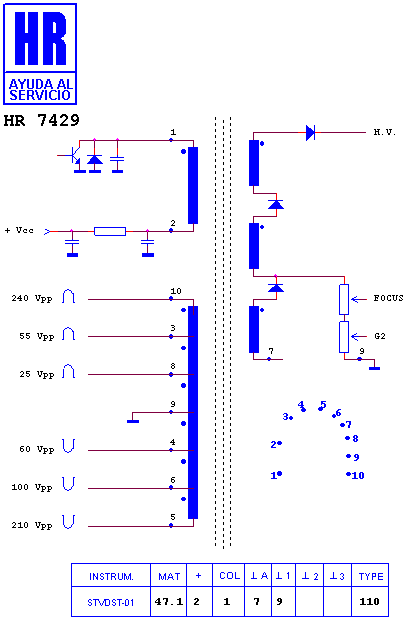

Schematic diagram for HR 7429
schematic (archived)

Manufacturer equivalents (1)

2436772

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6657 · HR 80069 · HR 6647 · HR 7087 · HR 7093 · HR 7321 · HR 6386 · HR 6227 · HR 6170 · HR 6550 · HR 7387 · HR 7317

Fitted to (5)

HITACHI 27 AX 5 BX · HITACHI 27 CX 1 B · HITACHI CHASIS M 1 LXU · HITACHI CT 7883 B · PHILCO PAVM 2920
